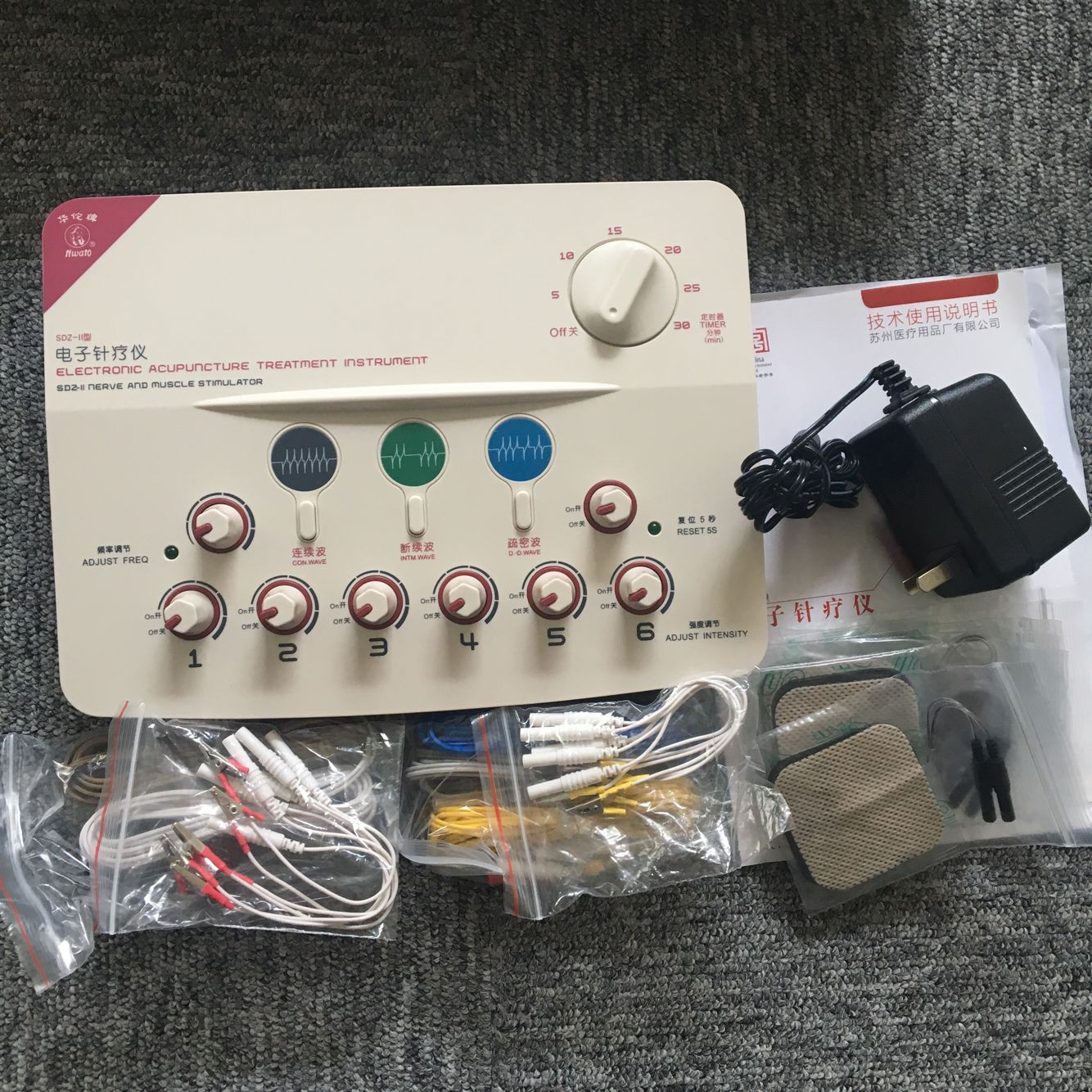

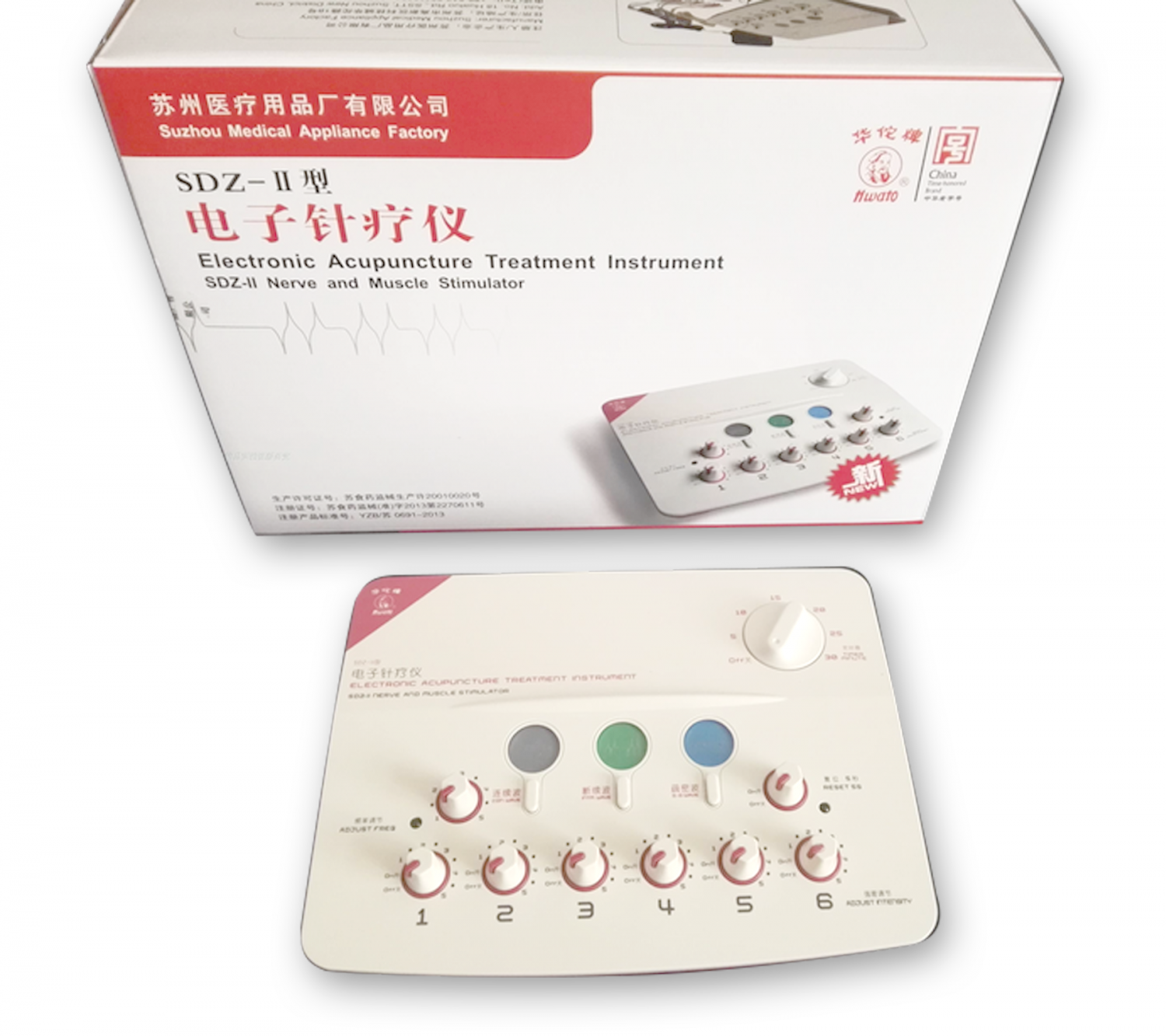

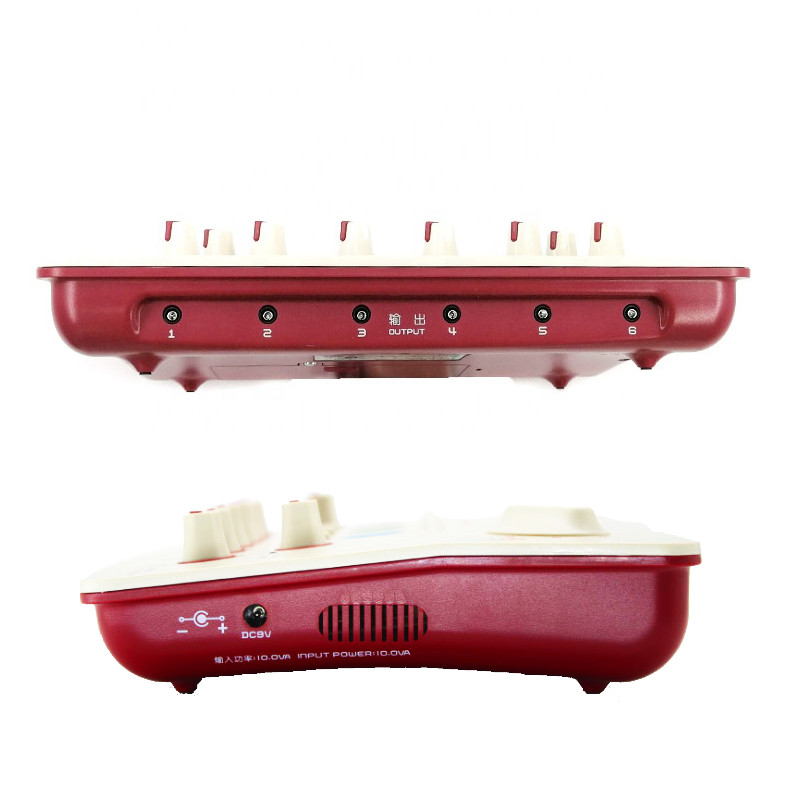

SDZ II Acupuncture needle Stimulator
Place of Origin: China
Brand Name: Huixinhe
Model Number: Hxh-SDZ-ii
Instrument classification: Class II
Product name: Electronic Acupuncture Treatment Instrument SDZ-ii
Reusable: Yes
Usage: Physio-therapeutics
Output Waveform: unsymmetrical dual directional pulse
Output power: 10V
Material: Plastic
-
Short Wave Diathermy (SWD) 1750
৳120,000.00 -
Short Wave Diathermy (SWD)
৳220,000.00 -
Trolley Short Wave Diathermy
৳65,000.00 -
Mini Muscle Stimulator (MST/EST/EMS)
৳5,000.00
Electronic Acupuncture Treatment Instrument( Nerve and Muscle Stimulator) is combined modern micro computer technique with traditional Chinese Medicine Acupuncture ad meridian Theory, based on the traditional SDZ series of electronic acupuncture treatment instrument. The device is used for applying low frequency pulse to stimulate the points of human body, may be used to apply an electrical current to electrodes on a patient’s skin to treat pain. This device doesn’t include acupuncture needles, combining with acupuncture needles in use.
| Specifications | 500 Ohm test load |
| Output channels | 6 channels |
| Pulse shape | asymmetric biphasic triangular pulse wave |
| Pulse width | 0.175ms±30% |
| Voltage max | less than 80 volts |
| Continuous | 1 to 100 Hz |
| Intermittent | 1 to 100 Hz,interval time betwwen groups is 5 sec |
| Dense | 5 to 100 Hz |
